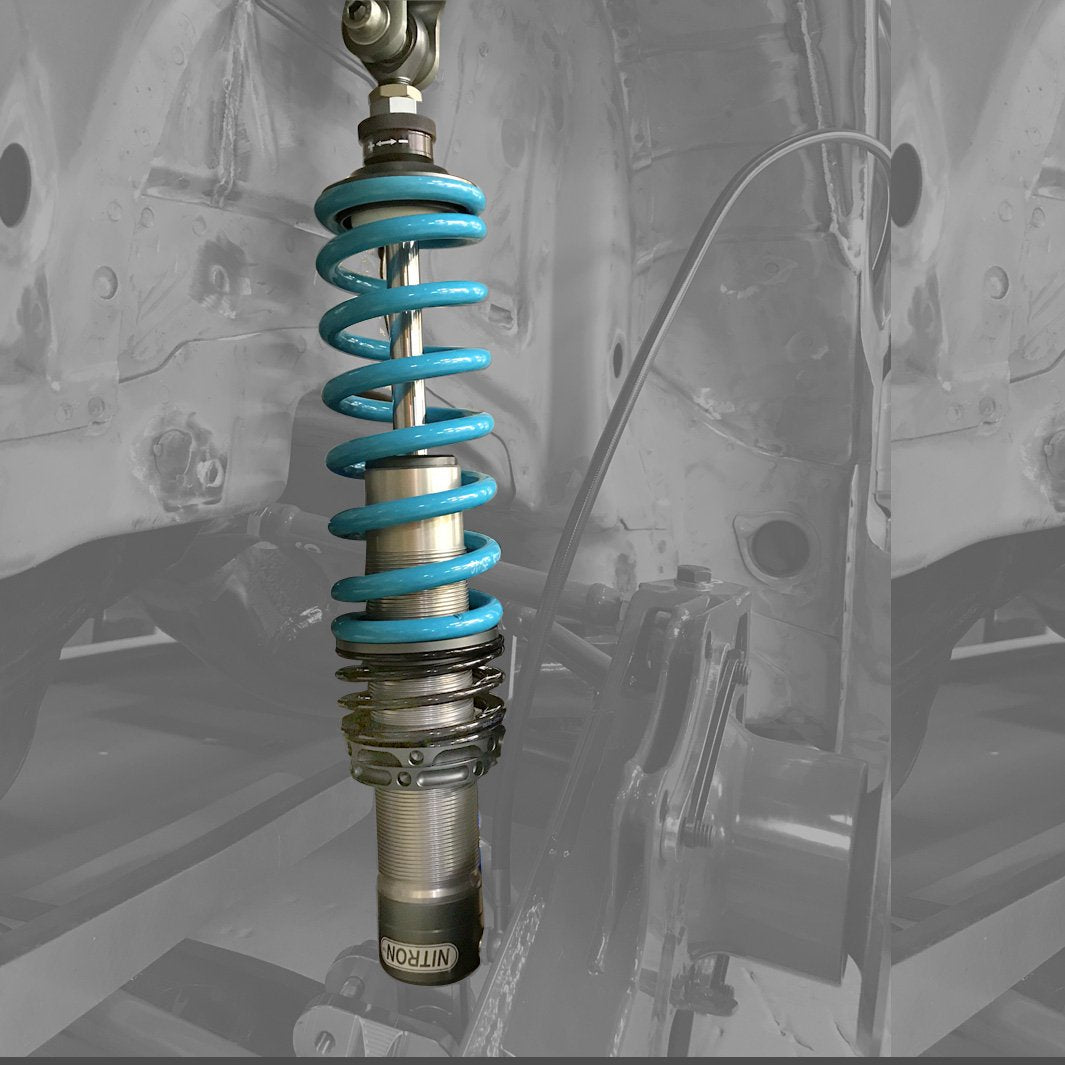

NTR R1 SYSTEM

The NTR R1 system offers unrivalled performance and value with a design that gives drivers a wide range of effective, easy to use damping control.

2-Way combined damping adjustment. Developed from our full race suspension and sharing many components with the R3 system, the R1 offers exceptional performance, reliability and value for both road and track use. Widely praised by drivers around the world and respected for out-performing considerably more expensive suspension kits.

R1 kits provides uncompromising quality, reliability and performance without the need for a remote canister. Fade-resistant and hand built with ultra-low friction components, the R1 shock is made to last on the road and track.

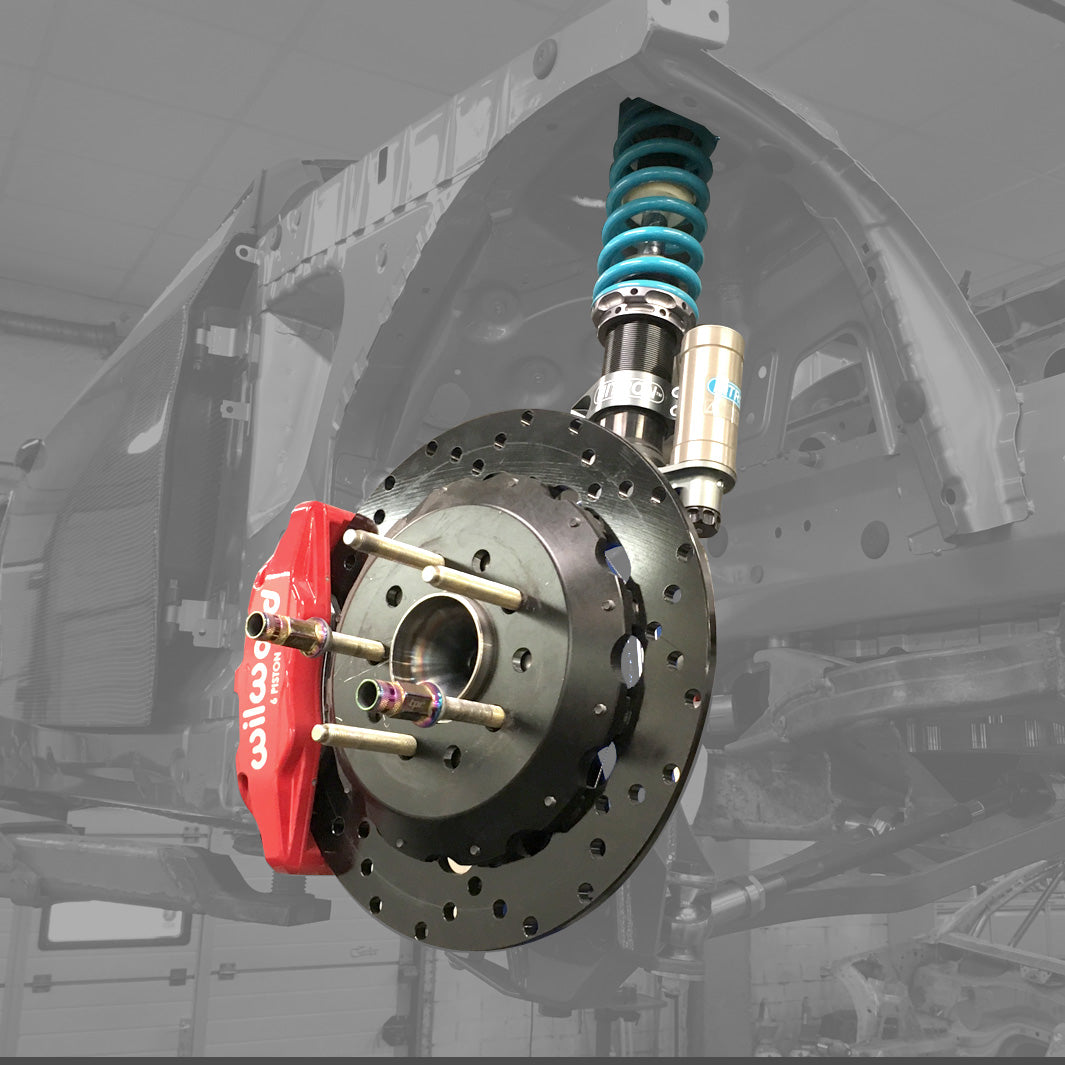

NTR R3 SYSTEM

The NTR R3 system sets the standard for ultimate performance with a design that offers drivers and engineers unparalleled damping control.

3-Way independent damping adjustment. By incorporating our class leading large diameter piston and ultra-strong piston rod, the R3 system demonstrates outstanding levels of performance, damping control and adjustment. Piggyback or remotely mounted reservoir allows quick and simple independent adjustment of rebound and fast and slow compression damping. The large range of adjustment and quality of feedback allows the experienced driver to fully exploit the full potential of their car. The R3 is a proven race winner and lap record holder across a wide spectrum of international motorsport formulas.

The high-grade materials protect against corrosion whilst reducing weight. Every R3 kit is custom built, sprung and fully serviceable. Titanium and hard-anodised parts are hand built to last not only the lengthiest endurance races, season after season, but also the harshest of winters.

Wisefab BMW e9x rear suspension kit can be fitted on a variety of BMW models. E90, E91, E92, E81, E82, E87, E88 models. All the metal components on E90 rear suspension are from high strenght steel, including sheetmetal components, tubes, tube ends and rod end housings. Also for weight reduction and stiffness purposes all the suspension links are designed straight and tubular or boxed type. Rod ends and spherical bearings used, no rubber bushings.

Here is our recommended alignment parameters:
Toe in/out: Toe in 3-10mm per side
Camber: -0.5 +/-0,5

BMW E90 / E92 / E92 M3 / E81 / E82 rear subframe mod kit is addition to Wisefab rear suspension that allows to get even more rear grip out of it.
