HGK-440 LS Based V8

HGK-440 LS Based V8

Based on our experience with LS based race engines over the decade, we decide to come up with potentially best setup for LS race engine, build in house at HGK Shop.

Quick View

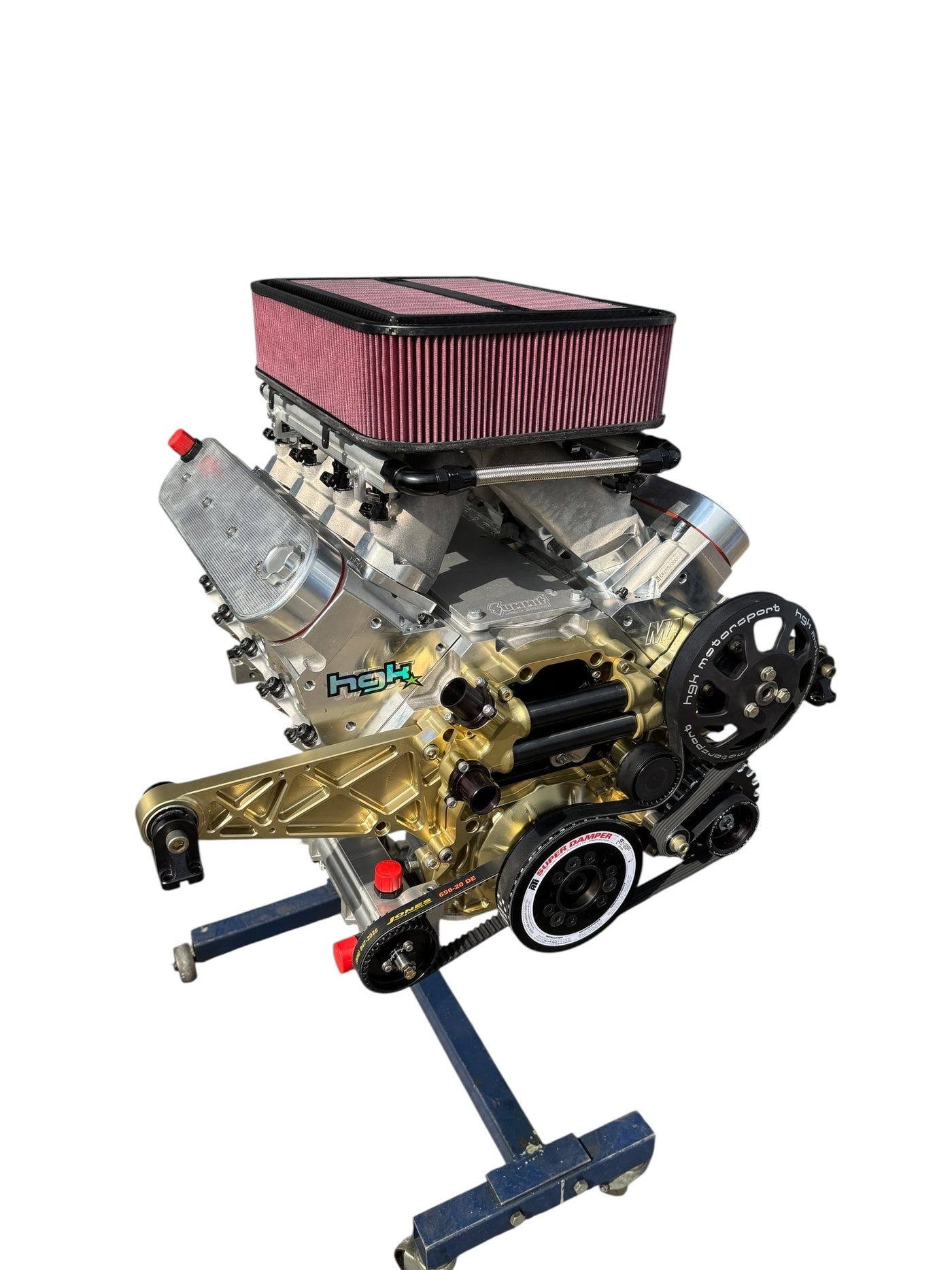

HGK LS-440 V8 RACE ENGINE
€45.000,00

HGK LS-440 V8 RACE ENGINE

€45.000,00 excl. VAT
/
Shipping calculated at checkout.

BASED ON OUR EXPERIENCE WITH LS BASED RACE ENGINES OVER THE DECADE, WE DECIDE TO COME UP WITH POTENTIALLY BEST SETUP FOR LS RACE ENGINE,
BUILD IN HOUSE AT HGKSHOP.

HGK-440 LS BASED V8 RACE ENGINE SPECS

  • Engine Block
  • RHS Standard Deck (Raised Cam) Stroker Kit 440ci
  • Compression Ratio 13.5:1
  • Estimate Power ~850HP/900Nm
  • Max RPM: 8000
  • Fuel Type: 109+ (race fuel)
    Rotating Assembly
  • Callies Billet Crank
  • Custom CP Pistons
  • Callies Forged Connecting Rods
  • CAM Motion Custom Camshaft
    Cylinder Head
  • Frankenstein F710 - Cylinder Heads
  • Valve Train – Hydraulic (Johnson Short Travel Lifters)
  • HGK Billet Valve Covers
    Intake
  • Single Plane Intake Manifold
  • Accufab Four Barrel 5500 Throttle Body
  • KN Sprint Car Filter
  • 8x Injectors 850cc With Fuel Lines
  • Nitrous Application available
    Oiling System
  • Dailey Dry Sump 5-Stage Kit
    Other Key Components
  • All ARP Fasteners
  • Cometic Head Gaskets
  • ATI Balancer
  • Cam And Crank Sensors Included
    HGK LS Front Motor Plate kit
  • Water Relocation Kit
  • Bosch Power Steering Pump With Pulley
  • Mechman 240A Alternator With Pulley & Tensioner
  • OEM GM starter
